Clinical evaluation of microendoscopy-assisted extreme lateral interbody fusion

Introduction

Extreme lateral interbody fusion (XLIF; NuVasive Inc., San Diego, CA, USA) is a minimally invasive technique for the treatment of lumbar canal stenosis and scoliosis. XLIF has become a popular surgical technique and an alternative method for conventional anterior and posterior approaches for interbody fusion (1). This approach provides direct access to the lateral aspect of the vertebral disc with minimal disruption of the surrounding structures, including ligaments and muscles. A large cage can be inserted in the intervertebral space without disrupting the anterior and posterior annulus fibrosis or longitudinal ligaments with minimal risk to the retroperitoneal structures and the great vessels (2,3).

However, some major complications are associated with the lateral approach, such as lumbar nerve plexus injury, segmental arterial injury and bowel perforation (4-6). Among these complications, segmental arterial injury and bowel perforation are fatal, and only a few reports regarding how to avoid these complications are available (6-9). These complications are troublesome because it is very difficult to find these complications during surgery owing to the narrow surgical space and the limited visual field.

To overcome these difficulties, we have been using a microendoscope for operative assistance since XLIF was introduced in our hospital. This study aimed to prove the superiority of microendoscopy-assisted XLIF compared to the conventional XLIF procedure.

This retrospective study analyzed the first consecutive 96 patients treated with microendoscopy-assisted XLIF between April 2013 and July 2016 by a single surgeon (Inanami H). Data regarding age, sex, levels of interbody fusion, estimated blood loss (EBL) and surgical time were collected from medical records. Operative and anesthesia records were also reviewed. The mean follow-up period was 18 months (range, 3–36 months), and major complications were identified. Preoperative and postoperative neurological status were evaluated using the Japanese Orthopedic Association (JOA) scores and Oswestry Disability Index (ODI).

Methods

Surgical procedure

The XLIF approach has been described in detail previously (1). Surgery was performed with the patient in the lateral decubitus position (left side up). The operating table was slightly bent at the iliac region to enlarge the intervertebral space on the approach side. An approximately 2-cm longitudinal incision was made to accommodate the surgeon’s index finger, which was inserted anteriorly through the muscle layers to identify the retroperitoneal space. After passing through the fascia and accessing the retroperitoneal space, the index finger was used to sweep the peritoneum anteriorly and then to palpate down to the psoas muscle. Once the psoas muscle was identified, the index finger was swept up to the direct lateral target mark. An incision was made at this direct lateral location and an initial dilator was introduced. Sequential dilation was performed under evoked electromyography in directional orientations with discrete threshold responses (NV M5^®; NuVasive Inc.) to provide information regarding the location of the lumbar nerve plexus during access to the lateral aspect of the disc. Following placement of the third dilator, an expandable retractor (Maxcess4^®; NuVasive Inc.) was placed over the final dilator. Finally, a microendoscope (Medtronic Sofamor Danke, Memphis, TN, USA) was attached to an expandable retractor with a custom-ordered attachment (made by Inanami H; Figure 1).

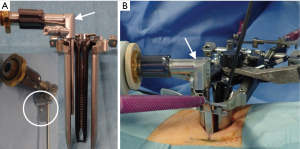

Figure 1 A microendoscope with a custom-ordered attachment and intraoperative view. (A) A microendoscope is attached inside the Maxcess 4 retractor; (B) intraoperative view. White arrows indicate the camera head and white circle indicates the custom-ordered attachment.

After installation of a microendoscope, we first confirmed that the retractor existed in the retroperitoneal space. With the combination of direct visualization using the microendoscope and electromyogram monitoring, we confirmed that the lumbar nerve plexus and the branches of the segmental artery were not in the surgical field. After that, the shim was safely inserted in the posterior borders of the corresponding vertebral disc and an anterior retractor was inserted in the ventral side of the anterior longitudinal ligament (ALL) (Figure 2). Subsequently, the clearly visualized lateral part of the annulus fibrosis was incised and discectomy and interbody implant placement were performed (Figure 3). After placement completion, the retractor was removed slowly to observe the psoas muscle rebounding and to confirm there was no excessive bleeding or visceral injury.

Figure 2 Intraoperative microendoscopic view of the retroperitoneal space. Right: Cranial view. Left: Caudal view. White arrow indicates the shim and white arrowhead indicates anterior longitudinal ligament (ALL).

Figure 3 Intraoperative microendoscopic view (A) and operator’s standing position and visual point (B) during an interbody implant placement. Note that surgical instruments do not interfere with the field (A) and the operator has a good and comfortable posture (B).

Results

Forty-one men and 55 women with an average age of 61 years (range, 22–83 years) underwent this procedure. The mean follow-up period was 18 months (range, 3–36 months). The most common primary diagnosis was spondylolisthesis (42 patients; 43.8%), followed by degenerative disc disease (35 patients; 36.5%) and spinal canal stenosis (10 patients; 10.4%). Eighty-four procedures involved a single vertebral level, nine involved two levels and three involved three levels (average, 1.2 levels) (Table 1). Supplemental posterior instrumentation was used for all patients.

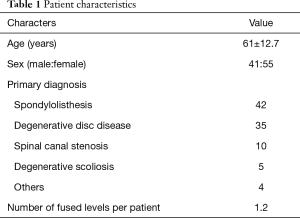

Table 1 Patient characteristics
Full table

The mean operative time per level required for the anterior procedure was 47 minutes (range, 21–109 minutes) and mean estimated intraoperative blood loss per level was 38 mL (range, 1–110 mL). The average preoperative and postoperative JOA scores were 11.9 and 15.6, with a mean recovery rate of 33%. The average preoperative and postoperative ODI scores were 38.6 and 19.1 (Table 2).

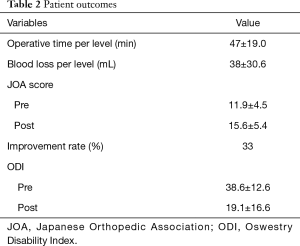

Table 2 Patient outcomes
Full table

There were 3 (3.1%) major complications. Two complications were L4 and L5 end-plate fractures that improved with conservative treatment. One complication was a deep surgical site infection that was diagnosed at 2 months after surgery. Reoperation was performed as follows: after only the cage was removed, debridement and then bone grafting were performed in the intervertebral disc space. Surgical site infection was resolved with antibiotic treatment for 3 months. There were no bowel perforations or vascular injuries.

Discussion

Microendoscopy-assisted spine surgery is a widespread minimally invasive technique in Japan (10). This technique was first applied to lumbar disc herniation (11). Then, it was extended to spinal canal decompression and interbody fusion (12). However, to our knowledge, XLIF has not been performed using a microendoscope. Therefore, we applied the microendoscope to the disc manipulation stage of the XLIF procedure.

The microendoscopic technique has two major advantages. First, a microendoscopic lens is angled at 25° and the viewpoint of a microendoscope exists in the body during surgery. Therefore, visualization of the lateral aspect is superior to what can be achieved with the unaided eye or surgical loupes, which has a viewpoint outside the body. It has been reported that approximately 25% of segmental artery branches at the L4 and L5 vertebral bodies existed behind the lateral aspect of the vertebral disc, that is, in the insertion position of the shim (13). Even though it is difficult to observe insertion of the shim with the unaided eye or surgical loupes, this microendoscopic technique makes it possible to insert the shim while observing the surgical field (Figure 2). Secondly, the surgeon, assistant and scrub nurse can all check the same surgical field through the microendoscopic view. As a result, it is possible to accurately ascertain the progress of surgery so that it can proceed smoothly.

However, this technique also has disadvantages such as a steep learning curve and the need for training under expert surgeons. In particular, it is important to be proficient in bidimensional surgery using a microendoscope. Ebata et al. reported the importance of preoperative training for microendoscopic surgery (14). They stated that if it is possible to receive appropriate and efficient guidance from expert surgeons, then the learning curve can be shortened.

In 2011, Rodgers et al. performed the largest study of complications during 600 XLIF procedures and reported that overall incidence of complications was 6.2% (4). Youssef et al. reviewed 14 XLIF reports by various authors and reported major complication rates were 4–8.6% (15). Our major complication rates were less than those of previous reports.

The limitation of this study was the lack of a control group for comparison. Although further studies are necessary, we speculate that major complications will not increase by using a microendoscope because this technique is not a new concept. It is a modification of established methods.

Conclusions

Despite the steep learning curve and the need for training under expert surgeons, microendoscopy-assisted XLIF is a potential alternative to the conventional XLIF procedure because of its efficacy and safety.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: This study was approved by ethics committee of the Iwai Medical Foundation, and informed consent was obtained from the patients for publication of this study and any accompanying images.
