Trends in lumbar spinal fusion—a literature review

Introduction

Since the earliest description of spinal fusion performed by Dr. Russell A. Hibbs in 1911 and later by Dr. Fred H. Albee for tuberculosis, it has become one of the most commonly performed orthopedic procedures. The indications for spinal fusion have broadened over time since the surgery was initially developed for the treatment of instability due to tuberculosis or deformities. Surgical techniques have evolved in the past decades and spinal fusion is now used to treat a variety of indications such as traumatic injuries, deformities, primary and secondary tumors, infections and degenerative conditions of the spine (1-3). The most common diagnoses in 2008 for spinal fusion procedures were lumbar degenerative disc disease and cervical disc replacement in the United States (13.8% and 12.2%) (1,4).

Several studies and systematic reviews have been published to provide guidelines about the optimal surgical treatment option for various indications. Various studies have showed that spinal fusion procedures have a positive effect on patient outcomes. The Spine Patient Outcomes Research Trial (SPORT) has been one of the most influential studies to investigate the treatment effect of operative and non-operative therapies in the treatment of spinal stenosis and degenerative spondylolisthesis. Published data continue to demonstrate the benefit of operative spine fusion interventions for these conditions at 2, 4 and 8 years postoperatively (5-7). Additionally, for tumor patients with spinal cord compression caused by spinal metastases, decompression combined with instrumentation showed better results compared to decompression alone (8-12).

Over the past several decades, there has been an upward trend in the total number of spinal fusion procedures worldwide. Kim et al. reported a difference in spine surgery utilization among Japan, Korea and the United States with the highest incidence of spine surgery in the United States (13). In Canada, an upward trend of lumbar fusion procedures has been reported with an increase from 6.2 to 14.2 procedures per 100,000 population between 1993 and 2012 in Ontario (14). In Australia, the number of spinal fusion procedures increased by 169% in the public and private sectors (2% and 167%) between 1997 and 2006, which was a higher increase than hip or knee arthroplasty procedures (15). In the United Kingdom, recent data showed a similar upward trend (16,17). Between 2005 and 2015, Provaggi et al. reported an increase of 63% in spinal fusion procedures in the United Kingdom (16,17). Similarly, Grotle et al. reported a significant increase in simple and complex lumbar spine surgery, mostly for fusion procedures, in Norway from 1999 to 2013 (18).

Trends in lumbar fusion procedures

In 2004, Deyo et al. published an article on the growing use of spinal fusion procedures in the United States with a 77% increase between 1996 and 2001 (2). Rajaee et al. analyzed the spinal fusion rate between 1998 and 2008 and reported an ongoing increase in the frequency and utilization of spinal fusion in the United States with a 2.4-fold (137%) increase. Sheik et al. analyzed 7.1 million cases between 1998 and 2014 from the largest United States inpatient health-care database and showed a continuously upward trend for spinal fusion procedures (P<0.001) with an increase of 118% from 1998 to 2014 and an overall downward trend in the utilization of non-fusion spinal procedures like decompression (Figure 1) (4,19,20). In regards to differentiating the trend in the number of levels operated in lumbar fusion procedures, Al Jammal reported a higher increase in short fusion procedures than long fusion procedures between 2010 and 2014 (from 35.3% to 47.2% versus 5.7% to 7.1%) in patients with lumbar stenosis (20).

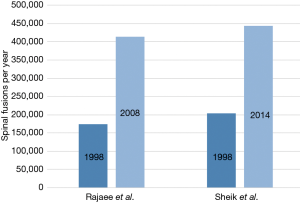

Figure 1 Utilization of spinal fusion procedures per year in the United States from 1998 to 2014 (1,4).

Sheik et al. reported close parallels in the upward trend of the utilization of spinal fusion as well as hip and knee procedures in the United States from 1998 to 2014, with a relative increase of 89% for spinal fusion and 81% for hip and knee procedures (4). Rajaee et al. published similar results for hip and knee arthroplasty with an increase of 49.1% and 126.8% compared to the 137% increase for spine fusion procedures between 1998 and 2008 (Figure 2) (1). The authors reported spinal fusion procedures went from the 37^th most common procedure in 1998 to the 16^th in 2008, directly after primary hip replacement (15^th most common procedure) (1). The increase in spinal fusion procedures does not appear to be associated with higher surgery utilization rates across specialties (1,4).

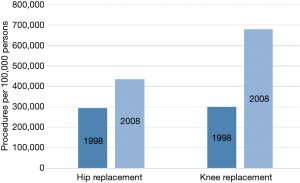

Figure 2 Utilization trend of hip and knee replacement (per 100,000 persons) in the United States from 1998 to 2008 (1).

Comparing cervical, thoracic and lumbar spine fusion procedures, the overall number of fusions procedures has increased in all regions of the spine. Wang et al. described a significant increase in cervical fusions of 206% for degenerative changes from 1992 to 2005 (21). Rajaee et al. reported a 114% increase in the annual number of primary cervical fusion cases and an 82% increase in primary thoracic fusion cases from 1998 to 2008 in the United States (1,4). With a 2.7-fold increase (170.9%), primary lumbar fusion had the largest increase compared to cervical and thoracic fusion procedures in this time period according to Rajaee et al. (1).

Al Jammal et al. reported a continuous increase in lumbar fusion surgeries from 41% to 54.3% in patients with lumbar stenosis in combination with and without coexisting scoliosis from 2010 and 2014 in the United States (20). Varshneya et al. reported an increase of 168.5% specifically for anterior lumbar interbody fusion (ALIF) procedures in the United States from 2007 to 2014 (22).

A multitude of factors may have contributed to increased spinal fusion utilization rates such as the improved biomechanical and pathophysiology understanding of the human spine, improved diagnostic imaging techniques, broader indications for surgery, the development of various instrumentation techniques with an increased availability of spinal fixation devices, the development of minimally invasive surgery (MIS), new surgical techniques, and innovative alternatives in bone grafting materials. Furthermore, significant technological advancements, a growing number of well-trained spine specialists, an increase in the life expectancy of the population, and the overall improved safety profile of spinal fusion procedures over time could be additional reasons for an ongoing upward trend in spine fusion surgery (1,4,13). The overall increased safety of spine fusion procedures with lower complication rates may also explain a decrease in reoperation rates (18).

Nevertheless, it is important for surgeons to be aware of potential complications and their management such as neurological injuries, dural tears, implant-related issues, pseudarthrosis, infections, and wound issues, especially in multilevel spinal fusions that have a higher risk for complication risk (23,24). Despite an increasing number of spine fusion procedures it is highly important to make individual decisions for each patient with considerations of the patient’s condition and risk for complications.

Trends in surgical approaches and implants

Advanced spinal fusion techniques like the use of pedicle screw fixation for posterior instrumentation, innovations in surgical approaches, and novel implants are factors in the increased spinal fusion rates and clinical outcomes over the last several decades (25-32). Surgical fusion is an effective treatment method to correct deformity, stabilize painful segment movement and restore lordosis and sagittal balance (31). There is a wide range of fusion methods, from anterior, lateral or posterior approaches, interbody fusion with stand-alone cages or with internal fixation that are used based on the surgical indication, surgeon preference, and patient condition.

Over the years, pedicle fixation systems for spinal stabilization have evolved to incorporate biomechanical principles of spinal stability and improvements in new technologies and materials. The systems can differ in many aspects such as in their method of attachment to the spine, specific pedicle screw design (mono- vs. poly-axial), the connection of the screw-rod system (side- vs. top-loading) as well as in the biomaterials used (33-35).

When the FDA approved intervertebral fusion cages in 1996, there was a rapid growth in fusion rates for all spinal fusion procedures (36). The variety of interbody fusion implants increased and are based on implant geometry like cage width, length, thickness and lordotic angle, material and material surface (14,37). Developments in cage designs evolved from biologic implants like bone dowels or femoral ring allografts to threaded titanium cages and polyetheretherketone (PEEK) cage devices (30). For the optimization of cage design, current studies are focusing on improving cage geometry, cage material and surface materials for better osseointegration and postoperative outcomes (35,38,39).

For posterior fusion with instrumentation, the preexisting posterolateral fusion without implants made progress over the last decades, leading to posterior lumbar interbody fusion (PLIF) as one of the most established lumbar fusion procedures. Other approaches have also been developed such as transforaminal lumbar interbody fusion (TLIF) for direct unilateral access to the intervertebral foraminal space (13,31,40). Similar to the development of posterior fusion techniques, anterior and lateral approaches have also evolved. The typical transperitoneal approach has been adapted to an anterior retroperitoneal approach.

Lumbar spinal fusion procedures are now well-known and widely adopted as surgical treatment for various spinal disorders such as congenital or degenerative deformities, degenerative disc disease, spondylolisthesis, spinal stenosis, trauma, infection and tumor (16,31). Currently there are different approaches to lumbar interbody fusion including ALIF, PLIF, lateral or extreme lateral lumbar interbody fusion (LLIF), and TLIF (Table 1).

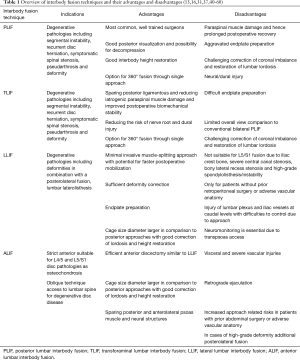

Table 1 Overview of interbody fusion techniques and their advantages and disadvantages (13,16,31,37,40-60)
Full table

The anterior retroperitoneal approach, mostly suitable for L4/5 and L5/S1, allows an efficient anterior discectomy and maximal implant size without injuring the posterior neural structures for effective correction of lordosis and height restoration of the affected level (31). The ALIF procedure spares the posterior and psoas muscle that improves postoperative stability, but the technique is known for visceral and vascular injuries (41,42).

PLIF is one of the traditional approaches for lumbar interbody fusion and is commonly performed by the majority of spine surgeons. The technique allows for posterior access to the spine with visualization of the nerve roots, the option for neural decompression, good interbody height restoration, and the possibility of a 360-degree fusion through a single incision (31,43). Disadvantages of the PLIF technique is that paraspinal muscle injury could result in delayed postoperative recovery, approach related injuries like retrograde ejaculation and sympathetic injury, the aggravated endplate preparation due to the posterior anatomy of the spine compared to anterior preparation, and possible inadequate correction of coronal imbalance and lordosis restoration (31,37,44).

The LLIF technique accesses the affected disc level through a lateral retroperitoneal, transpsoas approach. Due to the location of the iliac crest bone, LLIF is not suitable for treatment of the L5/S1 level. At the more caudal levels of the lumbar spine, the risk of injury to the lumbar plexus and iliac vessels increases. Advantages of this approach are less muscle injury with a potential for faster postoperative mobilization as well as the possibility for sagittal and coronal deformity correction (31,45-48).

TLIF provides direct unilateral access to the intervertebral foraminal space through the posterior spine while sparing the ligamentous structures and paraspinal muscles for better postoperative biomechanical stability. Endplate preparation can be difficult with this approach and correction of coronal imbalance and lordosis restoration is limited (31,41,49-53).

There is still no evidence on the clinical superiority of one approach over another. Indications for each approach vary based on surgeon preference, spinal fusion levels, and the patient condition (31,54,55). These fusion approaches can also be performed using mini-open or MIS techniques as a less-invasive surgical method. The evolution of MIS techniques is one possible explanation for the number of increasing spinal fusion procedures worldwide (16,31,47,56). Several studies have shown that interbody fusions have more than doubled in the past decade with a growing popularity in MIS techniques especially in PLIF and TLIF for various indications (57-60).

The lack of worldwide or even national guidelines and evidence for the treatment of different surgical indications has led to wide variability in surgical management. Studies are needed to assess clinical outcomes, reoperation and revision rates to better define the indications and efficacy of lumbar spinal fusion procedures (20,36,61-63). A worldwide comparison between increases in short and multilevel spine fusion rates would offer additional procedural evidence that can be informative about the potential impact on surgical outcomes. In addition, definitive conclusions regarding the advantages and disadvantages of a given implant and clinical evidence are lacking. Future surgical practice would benefit from continued biomechanical studies, experimentation and clinical studies. Additionally, the implementation of a spine implant registry similar to the knee and hip joint replacement registry would be useful to identify possible reasons for implant failure and improve fusion outcomes. The area of customized, patient-specific spinal implants is another interesting area and has yet to be explored in clinically relevant studies (16,64,65).

Trends in biologics

With the worldwide increasing number of spine fusion procedures performed every year, a number of new bone graft substitutes has been introduced to improve spine fusion rates as alternate methods to autograft harvesting (66-69). Bone graft substitutes such as bone marrow aspirate (BMA), mesenchymal stem cells (MSCs), allograft (i.e., cortico-cancellous allograft), and demineralized bone matrix (DBM) are often used in combination with synthetic grafts, ceramics or growth factors such as recombinant human bone morphogenetic proteins (rhBMPs) (66-68,70,71). The biologics differ in their capability as osteogenic (bone growth), osteoconductive (promotes ingrowth of blood vessels), and osteoinductive (promotes differentiation of stem cells) (72,73). Provaggi et al. showed that autograft is still the preferred bone grafting procedure in the United Kingdom (16). In contrast, there has been a small shift from autologous to other bone grafts in the United States (74).

Tissue engineering products such as bone growth factors, have the potential to lower the rate of pseudarthrosis. rhBMP-2 is currently the only FDA-approved growth factor. Additionally, recombinant human parathyroid hormone (rhPTH) and rhBMP-7 have been studied clinically for improving spinal fusion (75-78).

Autologous iliac crest bone graft (ICBG) remains the current “gold standard” as bone graft material in lumbar fusion surgery. The fusion rates with alternative bone graft substitutes like BMP-2 is still unclear and fusion rates range widely between studies. (67,75,79). Several studies investigated the complication spectrum of BMP-2, including carcinogenicity, and reported a wide range of potential complications, complication rates, and controversial conclusions (80-85). The systematic review of Mariscal et al. recently reviewed six high-quality randomized clinical trials. The review concluded that BMP-2 had more beneficial effects on posterolateral lumbar fusion rates with reduced surgical morbidity (surgical time, intraoperative blood loss, hospitalization days) with the same clinical patient-reported outcome scores (Oswestry Disability Index, 36-Item Short Form Health Survey, Back Pain Score) than ICBG in concordance with previous findings (79,86). Lao et al. reported in their trend analysis of rhBMP utilization in single-level PLIF and ALIF in the United States, a 3-fold increase from 2005 to 2011 in the rate of PLIF without rhBMP-2 compared to PLIF with rhBMP-2. There was a sharp decrease between 2009 and 2011 for ALIF with rhBMP-2 (87,88). The systematic review of Morris et al. showed comparable outcomes for most bone graft materials with the highest fusion rates for local autograft in combination with BMA in posterolateral lumbar fusion (67).

Cottrill et al. reviewed studies about experimental growth factors in animal models and identified several growth factors that may improve spine fusion rates (75). One of the most innovative research areas in spinal fusion is gene therapy. Gene therapy investigates the expression of genes that code for osteoinductive and osteogenic factors and how to target them. To date, however, gene therapy studies have been limited to preliminary animal models (89,90). Another interesting research area is the interaction of BMPs and BMP antagonists. How BMP antagonists influence BMPs’ osteogenic effects is one possible explanation for non-union after spinal fusion procedures (91-93).

With the growing number of bone graft substitutes, it is becoming increasingly difficult to compare all the available options. Consequently, deciding on the appropriate bone graft or bone graft substitute choice for the practicing spine surgeon is more challenging than in the past. Developing new technical innovations are expensive and often associated with limited use based on indication. For instance, bone graft substitutes like BMP-2 therefore are often used off-label for certain indications or surgical approaches in lumbar fusion procedures (94,95). The higher costs and restricted approval for the use of new bone grafts can prohibit their utilization despite improved clinical outcomes. An example where newer biologics may be cost prohibitive is in Germany, where the health-care system does not reimburse the costs for the usage of novel bone graft substitutes like for BMP-2 in Germany (96,97). Further studies should therefore investigate the best grafting options based on the patient and surgery while considering the overall cost-effectiveness and efficacy.

Conclusions

Spine surgery fusion rates continue to increase worldwide as a result of new developments in spine fusion procedures and surgical techniques, improved implants and interbody devices, and advancements in complication prevention strategies. Lumbar degenerative disc disease is the most common diagnosis for spine fusion surgery.

Continuous improvement of the safety profile of lumbar fusion surgery, the increasing number of minimally invasive procedures and innovative instrumentation devices in combination with new bone grafting materials will be reasons for an ongoing number of fusion procedures in the future.

How the increasing upward trend will affect the healthcare systems worldwide is one of the important future questions. Sheik et al. reported overall charges for spinal fusion procedures concurrently increased with the number of fusions from 34% in 1998 to 61% in 2014. In 1998 estimated $12 billion were charged in for spinal fusions compared to $48 billion in 2014 (4). The authors described changes in distribution of payers for spinal fusion procedures with a growing proportion of the cases paid by Medicare, from in 1998 21% of the procedures to almost 40% in 2014. Interestingly, Sheik et al. showed in contrast to the increased hospital charges a relative decrease in the reimbursement from public payers for spinal fusion procedures in the United States (4). How increasing costs of instrumentation and procedure specific costs have an impact on overall charges for spinal fusion procedures in the future and how the ongoing upward trend will be influenced is an interesting topic for future studies as well.

In the current literature, there is great variability in reporting about the ideal surgical management strategy based on indications and clinical outcomes. The results from studies about the optimal spine fusion procedure, use of instrumentation for internal fixation, instrumentation type, graft source, fusion location and postoperative treatment often conflict. Due to a lack of high-level evidence and clear guidelines, it can be difficult to compare treatment options and decide on the best surgical management. Large randomized and prospective studies are warranted to investigate fusion surgical treatment options based on patient condition and specific indications. It would also be interesting to investigate the utilization of the type of spinal fusion for specific indications and compare the upward trend between surgical procedures.
