Blood loss in total en bloc spondylectomy for primary spinal bone tumours: a comparison of estimated blood loss versus actual blood loss in a single centre over 10 years

Introduction

The resection of primary bone tumours of the spine presents many surgical challenges, often due to the proximity of the tumour to the neural structures and great vessels (1). Traditionally, piecemeal resection of the tumour was performed but this often resulted in incomplete resection and high risk of local recurrence. However, en bloc removal of the diseased vertebrae (spondylectomy) has become a widely accepted surgical technique allowing for the entire vertebral compartment to be excised (2-4). This procedure aims to achieve clear tumour margins which significantly reduces the rate of local recurrence (1). Complete resection is commonly achieved using a one or two-staged procedure, starting with resection of the posterior elements followed by resection of the anterior elements. A single all-posterior or double posteroanterior approach are commonly used, although a double anteroposterior approach can also be used (5). Modifications to these approaches are dependent on the level of tumour, the ability to achieve satisfactory safe margins and the ease of resection (5). Spinal column reconstruction is commonly completed utilising an expandable cage or bone graft. Total en bloc spondylectomy (TES) procedure is indicated for patients with primary spinal bone tumours (benign and malignant), including but not limited to; chondrosarcoma, chordoma, giant cell tumour (GCT), Ewing’s sarcoma, osteosarcoma, and osteoblastoma. Some patients with spinal metastases may also be considered for TES (1).

The proximity of the spinal column to major vessels makes TES a high-risk procedure for blood loss (6). The long surgical duration (average 14 hours) and the need for multi-step operations increase this risk further (5). Tomita et al. (2) recorded an average blood loss of 2,300 mL during TES for a single thoracic vertebra, whereas Sciubba et al. (6) estimated a median blood loss of 3,200 mL for TES operations for differing pathologies throughout the spinal column including the lumbar and sacral spine. Consequently, a median estimated blood loss (EBL) of 3,200 mL was used at the comparative standard for this study. This study aimed to assess the EBL during TES performed in the last 10 years at a single tertiary spinal centre in the United Kingdom and compare it with actual blood loss (ABL). We present the following article in accordance with the STROBE reporting checklist (available at https://jss.amegroups.com/article/view/10.21037/jss-22-27/rc).

Methods

We performed a retrospective review of our prospectively held spinal oncology database for all TES cases performed at our centre between 2005 and 2015. Inclusion criteria were: (I) patients with primary spinal bone tumours (malignant and benign); (II) patients undergoing TES (as decided in our specialist multi-disciplinary meeting). Patient data including age at operation and gender were collected from clinical notes. The following oncological characteristics for each tumour were recorded: type, size and vertebral level/s. Surgical variables were also recorded, including levels instrumented and levels resected, operation duration and the number of operation stages. Use of a cell salvage machine during the operation was also recorded [Sorin Xtra^® Autotransfusion System (ATS), LivaNova, London, UK]. EBL per TES operation was obtained from anaesthetic notes or the World Health Organisation (WHO) post-operative checklist report. In cases of multiple-stage operations, EBL values and operation duration times were summed to produce totals for the whole TES procedure. The number of perioperative blood transfusions was also recorded, as well as any post-operative blood transfusions given prior to the first post-operative haemoglobin measurement taken.

Calculation of ABL

In cases where EBL had not been recorded, ABL was calculated using the pre-operative patient body weight, pre- and post-operative haemoglobin, and peri-operative transfusion rates. The Gross (7) formula was used to calculate the ABL as described below:

Gross'sABL=(bloodvolume×[(Hbi−Hbf)/Hbm])[1]

Hb_i = initial haemoglobin measurement, defined as the last haemoglobin measurement taken pre-operatively.

Hb_f = final haemoglobin measurement, defined as the first haemoglobin measurement taken post-operatively.

Hb_m = mean of the initial and final haemoglobin measurement.

Blood volume (mL/kg) was calculated using the following formula:

Formales:bloodvolume=bodyweight(kg)×70mL[2]

Forfemales:bloodvolume=bodyweight(kg)×65mL[3]

To account for any increase in haemoglobin levels as a result of peri- and post-operative blood transfusions prior to the first post-operative haemoglobin measurement, the number of red blood cells transfused per case were calculated using the following formula and added to the ABL value.

As per Trust protocol, blood transfusion was indicated where serum haemoglobin levels were less than 8 g/dL unless the patient had significant cardiac morbidity, where transfusion was indicated for serum haemoglobin levels less than 9 g/dL.

Totalnumberofredbloodcellstransfused=220(redbloodcells/unit)×nubmerofunitstransfused[4]

Our final formula for ABL:

ABL=(bloodvolume×[(Hbi−Hbf)/Hbm])+totalnumberofredbloodcellstransfused[5]

Statistical analysis

Data are presented as median values with interquartile ranges. Kruskall-Wallis test was performed for all oncological and surgical variables. Dunn’s post-hoc test was applied if the initial analysis showed significant differences in blood loss. For patient characteristics, use of cell salvage and analysis of EBL vs. ABL, an unpaired t-test was performed. P values less than 0.05 were considered statistically significant. Statistical analysis was performed using Prism (Version 8.0.0 for Windows, GraphPad Software, San Diego, California, USA).

Ethical statement

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional board of the Royal Orthopaedic Hospital, Birmingham, UK (No. 17-037) and individual consent for this retrospective analysis was waived.

Results

Demographics

Thirty-three patients underwent TES without intralesional pediculotomy for primary bone tumours of the spine at our centre between 2005 and 2015. Twelve patients were excluded due to incomplete data records (n=6), postoperative mortality and inaccessible notes (n=2) and anaesthetic notes located at an alternative trust (n=8). Median age at operation was 40 years (IQR, 25–48 years). Tumour size ranged from 0.126 to 1,377 cm³. Total operative duration ranged from 392 to 1,180 minutes. The median number of total peri- and postoperative blood transfusions per patient was 5 (IQR, 2–7). Cell salvage was used in 62% patients with a mean blood loss of 2,845 mL (884–4,939 mL) and mean transfusion volume of 3.8 units (0–12 units) respectively, versus 4,069 mL (297–8,335 mL) and 9.3 units (0–18 units) in those not managed with cell salvage. Further demographic details can be found in Table 1.

EBL vs. ABL

A record of EBL was found in 81% of cases (17/21). For the remaining cases, ABL was calculated using the modified technique described above. To ensure that ABL was an appropriate measure of EBL, ABL was also calculated for all cases where EBL had been recorded (Figure 1). Compared to ABL, in 59% of cases EBL had been underestimated by an average of 78% by volume (IQR, 38–101%). The EBL of the remaining 41% cases had been overestimated by 43% by volume (IQR, 33–52%). Despite the differences found between ABL and EBL, this was not statistically significant (P=0.373). Due to the disparity between EBL and ABL and to standardise our analysis, ABL was used for the remainder of the study.

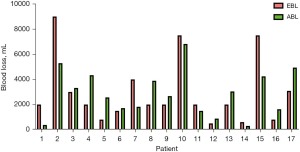

Figure 1 EBL from operative records vs. ABL calculated using the gross formula. EBL, estimated blood loss; ABL, actual blood loss.

ABL

The median total ABL for complete TES operations was 3,041 mL (IQR, 1,630–4,335 mL) with a mean ABL of 3,310 mL. The ABL in 48% of our cases was found to exceed the standard of 3,200 mL by an average of 1,976 mL. In the remaining 52% of cases, ABL was found to be lower than the standard by an average of 1,585 mL. There was no significant difference in ABL between any of the patient age groups: <30 (n=7), 30–39 (n=4), 40–49 (n=6), 50–59 (n=3) and ≥60 (n=2) (Figure 2A). The gender of the patient also did not influence ABL (Figure 2B). No significant difference in ABL between tumour types, sizes or number of operation stages was found (Figure 2C-2E). A trend towards significance was found for number of levels instrumented, with a P value of 0.067 (Figure 3A). Despite that there was a significant difference in ABL across the vertebral location of the tumour (P=0.0102) as shown in (Figure 3B), post-hoc tests showed no significance when each group was compared to the other. Operation duration also showed a significant difference in ABL with longer operative duration being associated with increased blood loss (P=0.03) (Figure 3C). However, no significant differences were found during post-hoc tests. There was no significant difference in ABL between operations that used cell salvage compared to those that did not (Figure 3D).

Figure 2 ABL by variable. (A) Age; (B) sex; (C) tumour type; (D) tumour size; (E) number of operation stages. GCT, giant cell tumour; ABL, actual blood loss.

Figure 3 ABL by variable. (A) Number of vertebral levels instrumented; (B) vertebral location of tumour; (C) operative duration; (D) use of cell salvage. C, cervical; T, thoracic; L, lumbar; S, sacral; ABL, actual blood loss.

Discussion

Statement of principle findings

Our study has demonstrated that EBL is an unreliable indicator of ABL in the context of TES for primary spinal bone tumours. Median ABL was 3,041 mL and required transfusion in all cases (autologous or allogenic). Use of cell salvage was associated with a lower average transfusion volume compared to those managed without (3.8 vs. 9.3 units respectively) but this failed to reach statistical significance (P=0.5775). ABL was not overtly influenced by tumour histology, size or by number of operative stages. A trend towards significance was seen with increasing number of vertebral levels instrumented (P=0.067), vertebral location (P=0.010) and operative duration (P=0.03).

Clinical relevance

Spondylectomy was first reported by Lièvre et al. in 1968 as a two-stage technique following a GCT resection from the 4^th lumbar vertebrae (8). This technique has been adopted and modified by several authors over the past decades (9-11). Although TES is recognised to be a fairly aggressive surgical approach, it has become the gold standard of treatment for spinal tumours given the growing body of evidence supporting the influence of good local control on survival rates with potentially curative outcomes (12,13).

Patients with primary spinal bone tumours are at risk of significant blood loss due to tumour-related factors such as proximity or invasion of vascular structures or hypervascularity of the tumour tissue itself (14). Several measures have been described in the literature to minimise blood loss including preoperative embolisation of segmental and feeding arteries above and below the tumour, perioperative administration of antifibrinolytic drugs such as tranexamic acid, intraoperative controlled hypotension, meticulous hemostasis, the use of hemostatic agents, and the use of intra-operative cell salvage (1,15,16). Despite our unit employing many of these measures to limit blood loss, our study found that a typical patient undergoing TES loses a median ABL of 3,041 mL and there was no statistically significant difference in transfusion rates when using cell salvage. Although the ABL demonstrated in this study is less than the standard of 3,200 mL described in Sciubba et al. (6), it remains significant and we must remain mindful of the large potential blood loss in the pre-operative planning and consenting stages (6).

Intra-operative blood loss is usually replenished by allogenic blood transfusion (ABT) (17). Despite the safety of ABT having improved, the risk of post-operative infection, immune-mediated complication and stimulation of the tumour still exist (17,18). This has promoted efforts to reduce dependence on ABT and find other alternatives such as intra-operative autotransfusion of salvaged blood (19,20). Autotransfusion of salvaged blood has long been proven to reduce the requirement for ABT in non-oncological elective surgeries (21-23). However, concerns exist that transfusion of salvaged blood might re-transfuse malignant cells and cause subsequent metastasis (24,25). Despite this, there is emerging evidence supporting the use of intraoperative cell salvage for major spinal surgery in deformity, oncology and degenerative settings (16,20,26-30) and it remains standard practice to use cell salvage in our unit for TES procedures based on this growing body of evidence.

Choi and colleagues (29) demonstrated in their study that intra-operative cell salvage reduced the need for ABT in 81 patients undergoing long level posterior spinal segmental instrumented fusion for spinal deformity correction. In our series cell salvage was used in 62% patients with a mean blood loss and transfusion of 2,845 mL and 3.8 units respectively, versus 4,069 mL and 9.3 units in those not managed with cell salvage. Although there was no statistically significant difference in ABL between operations that used a cell salvage compared to those that did not (P=0.5775), we concluded that the use of cell salvage has decreased the need for ABT and it was associated with a lower blood loss. Furthermore, the use of cell salvage anecdotally doesn’t appear to have had an adverse effect on survival and we would recommend its use based on the consensus of published literature (16,20,29).

Prior to the start of this study, we anticipated a significant increase in blood loss for tumours located in the lumbar region (31), long operation duration and with increasing number of vertebral levels instrumented. We noticed a trend towards our predictions however, significance levels were not reached when groups were compared to one another. This could be due to the low number of cases included in this series due to its rare occurrence. As we continue to refine TES techniques in order to reduce the major risks, it is likely that more will be carried out and significant differences in blood loss for differing variables will be seen. This study found that EBL was not consistently recorded for all cases and was not an accurate measure of ABL. Although EBL and ABL were not significantly different, we recommend that ABL is used as a measure of blood loss as it reduces any variations that may be caused by operator interpretation.

Limitations

This study has several limitations. The study was retrospective in nature, which carries the risk of information bias and it was performed in a single centre with a relatively small sample size. This may have resulted in the statistical significance of our findings being undermined. The small sample size may also affect the generalisability of our results to the wider spinal tumour population, especially those managed similarly in a tertiary centre. Furthermore, EBL was not uniformly recorded and was measured by different staff members and was thus not standardised. Additionally, not all confounding factors were considered and survival/local recurrence/distant metastasis data is missing.

Despite the recognized limitations, this study reports one of the largest case series in TES for primary bone spinal tumours. Further prospective studies of a large sample size (including a multi-centre review) could reveal any trends in blood loss and the impact of routine use of intraoperative cell saver system in major spinal tumour surgery. We also anticipated that there would be no difference in survival, local recurrence and distant metastasis rates where cell salvage was and was not used—since cell salvage does not determine survival and the study was not randomised any effect demonstrated would be an observation, not a proven outcome.

Conclusions

TES operations still are associated with a major risk of blood loss; pre-operative measures and operative techniques must be refined in order to reduce the risk. In this study, EBL was shown to be an unreliable indicator of blood loss and the use of ABL reduces any variations that may be caused by operator interpretation. A large blood loss should be anticipated and the use of cell salvage should be considered.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://jss.amegroups.com/article/view/10.21037/jss-22-27/rc

Data Sharing Statement: Available at https://jss.amegroups.com/article/view/10.21037/jss-22-27/dss

Peer Review File: Available at https://jss.amegroups.com/article/view/10.21037/jss-22-27/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jss.amegroups.com/article/view/10.21037/jss-22-27/coif). MG reports having received support from DePuy Snythes to attend their own Expert Level ‘Complications’ Meeting in April 2022. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional ethics board of the Royal Orthopaedic Hospital, Birmingham, UK (No. 17-037) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Tomita K, Kawahara N, Murakami H, et al. Total en bloc spondylectomy for spinal tumors: improvement of the technique and its associated basic background. J Orthop Sci 2006;11:3-12. [Crossref] [PubMed]
2. Tomita K, Kawahara N, Baba H, et al. Total en bloc spondylectomy for solitary spinal metastases. Int Orthop 1994;18:291-8. [Crossref] [PubMed]
3. Melcher I, Disch AC, Khodadadyan-Klostermann C, et al. Primary malignant bone tumors and solitary metastases of the thoracolumbar spine: results by management with total en bloc spondylectomy. Eur Spine J 2007;16:1193-202. [Crossref] [PubMed]
4. Liljenqvist U, Lerner T, Halm H, et al. En bloc spondylectomy in malignant tumors of the spine. Eur Spine J 2008;17:600-9. [Crossref] [PubMed]
5. Jones M, Holton J, Hughes S, et al. Total en bloc spondylectomy. J Spine Surg 2018;4:663-5. [Crossref] [PubMed]
6. Sciubba DM, De la Garza Ramos R, Goodwin CR, et al. Total en bloc spondylectomy for locally aggressive and primary malignant tumors of the lumbar spine. Eur Spine J 2016;25:4080-7. [Crossref] [PubMed]
7. Eipe N, Ponniah M. Perioperative blood loss assessment - how accurate? Indian J Anaesth 2006;50:35-8.
8. Lièvre JA, Darcy M, Pradat P, et al. Giant cell tumor of the lumbar spine; total spondylectomy in 2 states. Rev Rhum Mal Osteoartic 1968;35:125-30. [PubMed]
9. Boriani S, Weinstein JN, Biagini R. Primary bone tumors of the spine. Terminology and surgical staging. Spine (Phila Pa 1976) 1997;22:1036-44. [Crossref] [PubMed]
10. Tomita K, Kawahara N, Baba H, et al. Total en bloc spondylectomy. A new surgical technique for primary malignant vertebral tumors. Spine (Phila Pa 1976) 1997;22:324-33. [Crossref] [PubMed]
11. Roy-Camille R, Saillant G, Mazel CH, et al. Total vertebrectomy as treatment of malignant tumors of the spine. Chir Organi Mov 1990;75:94-6. [PubMed]
12. Amendola L, Cappuccio M, De Iure F, et al. En bloc resections for primary spinal tumors in 20 years of experience: effectiveness and safety. Spine J 2014;14:2608-17. [Crossref] [PubMed]
13. Duan PG, Li RY, Jiang YQ, et al. Recurrent adamantinoma in the thoracolumbar spine successfully treated by three-level total en bloc spondylectomy by a single posterior approach. Eur Spine J 2015;24:S514-21. [Crossref] [PubMed]
14. Bilsky MH, Fraser JF. Complication avoidance in vertebral column spine tumors. Neurosurg Clin N Am 2006;17:317-29. vii. [Crossref] [PubMed]
15. Ishii T, Murakami H, Demura S, et al. Invasiveness Reduction of Recent Total En Bloc Spondylectomy: Assessment of the Learning Curve. Asian Spine J 2016;10:522-7. [Crossref] [PubMed]
16. Kumar N, Zaw AS, Khoo BL, et al. Intraoperative cell salvage in metastatic spine tumour surgery reduces potential for reinfusion of viable cancer cells. Eur Spine J 2016;25:4008-15. [Crossref] [PubMed]
17. Kumar N, Chen Y, Nath C, et al. What is the role of autologous blood transfusion in major spine surgery? Am J Orthop (Belle Mead NJ) 2012;41:E89-95. [PubMed]
18. Blajchman MA, Bordin JO. The tumor growth-promoting effect of allogeneic blood transfusions. Immunol Invest 1995;24:311-7. [Crossref] [PubMed]
19. Chen Y, Tai BC, Nayak D, et al. Blood loss in spinal tumour surgery and surgery for metastatic spinal disease: a meta-analysis. Bone Joint J 2013;95-B:683-8. [Crossref] [PubMed]
20. Kumar N, Ravikumar N, Tan JYH, et al. Current Status of the Use of Salvaged Blood in Metastatic Spine Tumour Surgery. Neurospine 2018;15:206-15. [Crossref] [PubMed]
21. Dusik CJ, Hutchison C, Langelier D. The merits of cell salvage in arthroplasty surgery: an overview. Can J Surg 2014;57:61-6. [Crossref] [PubMed]
22. Liu JM, Fu BQ, Chen WZ, et al. Cell Salvage Used in Scoliosis Surgery: Is It Really Effective? World Neurosurg 2017;101:568-76. [Crossref] [PubMed]
23. Mujtaba A, Mohammed A. The use of cell savers in orthopaedic surgery. Int J Cur Res 2016;8:42429-31.
24. Yaw PB, Sentany M, Link WJ, et al. Tumor cells carried through autotransfusion. Contraindication to intraoperative blood recovery? JAMA 1975;231:490-1. [Crossref] [PubMed]
25. Autologous blood transfusions. Council on Scientific Affairs. JAMA 1986;256:2378-80. [Crossref] [PubMed]
26. Kumar N, Ahmed Q, Lee VK, et al. Can there be a place for intraoperative salvaged blood in spine tumor surgery? Ann Surg Oncol 2014;21:2436-43. [Crossref] [PubMed]
27. Kumar N, Lam R, Zaw AS, et al. Flow cytometric evaluation of the safety of intraoperative salvaged blood filtered with leucocyte depletion filter in spine tumour surgery. Ann Surg Oncol 2014;21:4330-5. [Crossref] [PubMed]
28. Kumar N, Ahmed Q, Lee VK, et al. Are we ready for the use of intraoperative salvaged blood in metastatic spine tumour surgery? Eur Spine J 2016;25:3997-4007. [Crossref] [PubMed]
29. Choi HY, Hyun SJ, Kim KJ, et al. Clinical Efficacy of Intra-Operative Cell Salvage System in Major Spinal Deformity Surgery. J Korean Neurosurg Soc 2019;62:53-60. [Crossref] [PubMed]
30. Reitman CA, Watters WC 3rd, Sassard WR. The Cell Saver in adult lumbar fusion surgery: a cost-benefit outcomes study. Spine (Phila Pa 1976) 2004;29:1580-3; discussion 1584. [Crossref] [PubMed]
31. Jones M, Alshameeri Z, Uhiara O, et al. En Bloc Resection of Tumors of the Lumbar Spine: A Systematic Review of Outcomes and Complications. Int J Spine Surg 2021;15:1223-33. [Crossref] [PubMed]
