Salvage of failed direct lateral sacroiliac joint fixation using a new percutaneous lateral-oblique transfixation technique with two variable-threaded screws: a multicenter case report of three cases

Introduction

Background

Lower back pain caused by the sacroiliac joint (SIJ) is frequently overlooked (1-3). The SIJ is estimated to be a cause of chronic low back pain in 15–30% (4) of patients presenting for evaluation and in about 40% of patients with low back pain who had a prior lumbar instrumented fusion (5). The SIJ is complex in nature and is the largest axial joint in the body, which allows for mobility of the spine with the pelvis (6). The biomechanics of the joint does not allow for much stability against the shear loads which causes instability of the joint (6,7). Secondary surgery rates are especially higher with L5–S1 fusion which is increases with long-segment fusion and extended instrumentation to the pelvis (8).

With the popularization of the triangular titanium implant (TTI) wedges (iFuse Implant System, SI-Bone, Inc., Santa Clara, CA, USA) surgeons have utilized a percutaneous direct lateral approach to perform SIJ fusion. Randomized clinical trials have shown superior pain improvement and quality of life in patients who underwent direct lateral SIJ fusion versus non-operative treatment (9-11). The TTI is designed for SIJ fusion based on bone adherence to the surface and three devices are recommended for rotational stability. One or more may not achieve fusion and thus have the likelihood for pain. There is a reported up to 16.4% risk of adverse events using the direct lateral approach (12,13). The revision rate for SIJ using a direct lateral approach ranged from 5.7% to 30.8% (14). Faced with pseudoarthrosis, the differential diagnosis may include infection, although rare. Shamrock et al. evaluated fourteen studies, found a 2% incidence of wound infection and a 1.6% incidence of nerve root impingement (15). Postoperatively, patients were required to restrict weight bearing for up to six weeks.

Rationale and knowledge gap

The revision of failed direct lateral SIJ implant has traditionally required an open incision through the gluteal muscles and dissection through scar tissue within the area where the superior gluteal neurovascular structures reside. The exact percentage of patients who require revision of their iFuse implants is unknown, but published data in one study reported 3.6% at 4 years (16). Given the potential morbidity from revising failed direct lateral SIJ implants, Sacrix^® Limited Liability Company (LLC) (Malden, MA, USA) developed a new cannulated variable-threaded device called SacroFuse^® (Figure 1) and a new percutaneous lateral-oblique transfixation technique to fixate the SIJ around the failed direct lateral SIJ implants percutaneously without removing them.

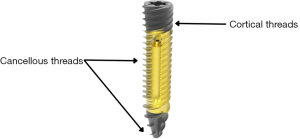

Figure 1 Sacrix^® SacroFuse^® Screw showing two variable-threads.

Objective

We hypothesized that a lateral-oblique technique to place two variable-threaded screws could be used to fixate the SIJ without the need to remove the failed implants. Our objective was to describe the technique and used three illustrative cases performed by two surgeons in separate facilities who were trained by the surgeon (primary author). We present this case report in accordance with the CARE reporting checklist (available at https://jss.amegroups.com/article/view/10.21037/jss-23-43/rc).

Case presentation

Three patients were enrolled in this study with failed direct lateral SIJ fusions with three implants. An independent radiologist and the operating orthopedic spine surgeon evaluated the preoperative and postoperative plain radiographs. All three revision surgeries were performed through a new posterior incision over the lateral border of the iliac crest without removing the existing implants. The inclusion criteria for surgery included a history of lower back and buttock pain, painful physical examination, unassisted ambulation, positive diagnostic intra-articular SIJ injections, positive imaging for pseudoarthrosis, and failed conservative management (such as medication and activity modification) for at least 6 months. On plain radiographs and/or computed tomography (CT) scans, signs of halo and implant migration were suggestive of probable loosening. Clinical patients had at least three out of five provocative positive SIJ pain tests: distraction, thigh thrust, compression, Gaenslen’s and flexion, abduction, and external rotation (FABER). All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Prior to surgery, all patients signed an informed consent form that explained the procedure, risks, and benefits and were informed of data collection for research purposes. Data regarding these groups were collected from medical records and operative notes. Western Institutional Review Board approval was granted through protocol # 20181251.

Surgical technique

Each surgeon underwent training on a cadaver with the board-certified orthopedic spine surgeon who was the inventor of the new technique and the variable-threaded screws. The patient was placed prone after general anesthesia and sterile preparation was performed. The fluoroscope was tilted to 20–30 degrees cephalad (pelvic outlet view) to flatten the S1 endplate then rotated 20–30 degrees contralateral oblique to visualize the SIJ and the posterior lateral border of the iliac crest and medial teardrop illustrating the top of the iliac crest (17) (Figure 2). Marcaine with epinephrine was injected approximately 2 cm lateral to the line and caudal to the S1 endplate line within the alar skin markings. A Jamshidi needle was placed through the skin under direct hand control. The S1 screw trajectory was aimed towards the tip of the S1 sacral promontory and below the L5–S1 disc space. A direct lateral fluoroscopic view was used to ensure that the Jamshidi needle was docked high on the lateral border of the iliac crest above the posterior margin of the sacrum. Using a percutaneous technique, the Jamshidi needle was inserted across the SIJ into the sacral alar above the laterally placed implants. A smooth, blunted tip Nitinol guidewire was inserted through the Jamshidi needle into the alar. The Jamshidi was removed and an approximate 1-inch incision was made around the guidewire. A dilator was inserted over the guidewire and a working cannula was inserted and docked on the iliac crest. The position was confirmed using fluoroscopy, and the dilator was removed to leave the working cannula. A 12 mm × 60 mm screw was prepacked with NanoFuse Biologics Putty (NanoFuse Biologics LLC, Malden, MA, USA) and inserted over the guidewire at the S1 level under a pelvic inlet view to confirm that the screw would not breach the anterior border of the sacral alar. The procedure was repeated for the placement of a second screw measuring 12 mm × 50 mm at the S2 level below the laterally placed implants. The screws were placed along the outer border of the iliac crest posteriorly and advanced obliquely and anteriorly across the SI joint into the sacral alar at the S1 and S2 levels, allowing for cancellous bone self-harvest and purchase. Screw placement was confirmed with intraoperative fluoroscopy using multiple views. Figure 3 shows fluoroscopic images of the surgical technique steps in a failed direct lateral case with three TTI wedges. After irrigation and hemostasis, the wound was closed in layers and a dry sterile dressing was applied.

Figure 2 Sacrix^® view (oblique-pelvic outlet tilt) showing the Sacrix^® line, S1 endplate, and SIJ. SIJ, sacroiliac joint.

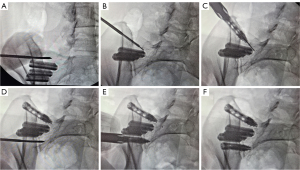

Figure 3 Case 1. Intraoperative fluoroscopy showing Sacrix^® lateral-oblique transfixation surgical technique steps cephalad and caudal to prior direct lateral SI-Bone implants. 20 degrees inlet contralateral oblique view (A,D,E,F) and 20 degrees outlet contralateral oblique view (B,C).

Case 1

The first case was a 47-year-old female with recurrent but worse left SIJ pain radiating towards the hip and groin after SIJ fusion using three TTI wedges. The pain was exacerbated with standing, walking and physical activities. The patient had localized tenderness over the sacral sulcus, SIJ provocative tests and radiographic evidence of loosening of the implants suggesting pseudoarthrosis, as shown in Figure 4A. At 20 months post op, a revision of the left SIJ fusion was performed and two variable-threaded screws were placed, one cephalad and one caudal to the three TTI wedges, under fluoroscopic guidance. At 22-month follow-up, postoperative anteroposterior (AP) and lateral radiographs showed satisfactory placement of the two screws (Figure 4B,4C).

Figure 4 Case 1. Preoperative radiograph AP (A) shows implant halo (red arrows) on direct laterally placed SI-Bone TTI wedges. Postoperative AP and lateral (B,C) radiographs show fixation with the SacroFuse^® screws cephalad and caudal to the TTI wedges. AP, anteroposterior; TTI, triangular titanium implants.

Case 2

The second case was a 40-year-old female with left buttock pain and diagnosed with instability of the left SIJ after pregnancy. She underwent left SIJ fixation with three TTI but within a year, she was found to have recurrent left buttock pain and intermittent radiation to the left groin with prolonged sitting, standing and activities. The patient reported tenderness over the left SIJ and a positive response to provocative tests on physical examination. There was radiographic suspicion of lucency around two of the three TTI (Figure 5A,5B). A coronal CT scan confirmed implant migration and lucency around the tip of the TTI (Figure 5C) suggestive of pseudoarthrosis. The patient underwent a revision left SIJ fixation at 26 months and in this case, the first screw was placed cephalad to the TTI wedges while the second screw was placed between the remaining two wedges. Postoperative AP and lateral radiographs showed fusion (Figure 6A,6B), confirmed on axial CT scan at 10-month follow-up (Figure 6C).

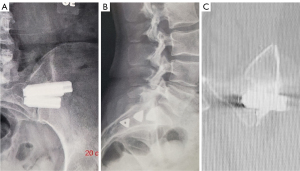

Figure 5 Case 2. Preoperative radiographs AP and lateral (A,B) show migration and CT scan (C) shows implant halo and migration on direct laterally placed SI-Bone TTI wedges. AP, anteroposterior; CT, computed tomography; TTI, triangular titanium implants.

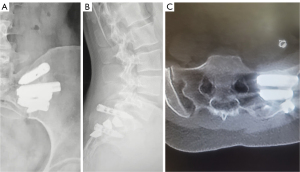

Figure 6 Case 2. Postoperative radiograph AP and lateral (A,B) show SacroFuse^® cephalad and between the three SI-Bone iFuse TTI wedges. Postoperative axial CT scan (C) shows definitive fusion of the SIJ. AP, anteroposterior; TTI, triangular titanium implants; CT, computed tomography; SIJ, sacroiliac joint.

Case 3

The third case involved a 61-year-old male with a lumbar fusion with recurrent right buttock pain and intermittent radiating pain to the groin following a prior right SIJ fixation using three CoreLink Entasis screws (CoreLink, St. Louis, MO, USA). There was pain focused around the right SIJ and positive provocative SIJ compression tests on physical examination. At 36 months post op, two SacroFuse^® variable-threaded screws were successfully placed cephalad and caudal to the lateral implants seen on postoperative AP and lateral radiographs (Figure 7A,7B), Fusion was confirmed on axial CT scan at 6 months (Figure 7C). The patient latest follow up was at 26 months.

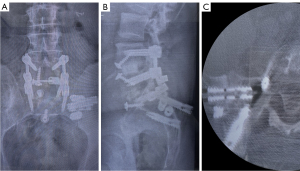

Figure 7 Case 3. Postoperative AP and lateral (A,B) radiographs show fixation with the SacroFuse^® screws cephalad and caudal to the three CoreLink screws. Postoperative axial CT scan (C) shows definitive fusion of the SIJ. AP, anteroposterior; CT, computed tomography; SIJ, sacroiliac joint.

All the patients were discharged home the same day. The time between the initial SIJ fixation surgery and the salvage procedure ranged from 20, 26 and 36 months. The mean procedure time was 20 minutes, with blood loss of less than five cc. The incision size was approximately 1 inch. The prior SIJ fixation implants were left untouched. We found CT scan evidence of solid fusion as early as 6 months (Figure 7C). The patients reported immediate reduction in their preoperative pain after the revision surgery with the Sacrix technique, but all patients still had some residual pain at baseline at the latest follow-up. There was an 89% decrease in pain from the mean preoperative Visual Analog Score (VAS) score of 9.5 to the mean postoperative VAS score of 1 at the latest follow-up. There were no complications or implant failures.

Discussion

Key findings

The Sacrix^® percutaneous lateral-oblique transfixation approach with two variable-threaded screws allows for oblique screw placement across the SIJ for favorable biomechanical strength and direct compression of the joint increasing the possibility of fusion while avoiding the failed direct laterally placed implants. This technique avoids gluteal muscle disruption, as observed with the direct lateral approach. The entry point was the posterior superior iliac spine and was performed percutaneously without any tissue dissection. This entry point was relatively superficial in all patients. The trajectory also avoided all neurovascular structures which are at risk with the direct lateral approach. The devices are placed diagonally across the SI joint, which transfixes the joint from the instantaneous axis of rotation (IAR), and limits rotations (18). Furthermore, the technique described in this report was shown to be effective with just using two screws (17). To our knowledge, these are the first three cases to illustrate the salvage of a failed laterally placed SIJ fixation using a percutaneous lateral-oblique transfixation technique with two variable-threaded screws.

Strengths and limitations

Given that there are only three illustrative cases, we may not be capturing the full scope of the possible clinical, radiographic, and technical experience in all patients. Therefore, there is prospect for limited surveillance of possible adverse events. However, the technique is reproducible as it uses the iliac crest as a landmark to place the screws, which is anatomically consistent among patients and the oblique inlet radiographic view to avoid the previous implants which allows for direct visualization of the screw trajectory and length.

Comparison with similar research

Transfixing the SI joint to stop painful micromotion forms a foundation for the rationale of the direct lateral approach used to treat the three patients described. While this is the first article to detail a lateral-oblique approach with variable-threaded screws, Sayed et al. reported the utilization of a posteriorly placed cortical allograft within the SIJ to salvage a failed direct lateral SIJ fusion at a mean interval time of 19.7 months (19). Whang et al. reported evidence of bony fusion at the SIJ for three TTI increased from 45% at 12 months to 71% at 24 months (20). Chin et al. confirmed fused SIJ following the Sacrix technique at 24 months using two screws (17). In our study, the time interval between the initial SIJ fixation surgery and the salvage procedure ranged between 20 to 36 months.

Explanations of findings

The percutaneous approach in this study aimed to salvage a difficult problem when a SIJ fixation device fails using the direct lateral approach and placement of three implants. This leaves little room for additional direct lateral implants, and it is highly morbid to remove the failed implants. The surgeons felt that they needed a strong trans-articular fixation technique that would fixate the SIJ with the direct lateral implants still in place. Procedures such as the direct lateral approach are aimed at stabilizing the large SIJ directly at or in close proximity to the IAR are likely to face a mechanical disadvantage compared to techniques that block motion further away from the IAR such as the lateral-oblique approach (18). The rate of revision for direct lateral SIJ ranged from 5.7% to 30.8% (14). The primary treatment goals of achieving immediate stability and long-term fusion were successfully accomplished. While the patients experienced a reduction in pain, they still reported some residual baseline pain. We suspected that the prolonged duration of symptoms in these patients may have led to the development of chronic pain, which persisted even after the treatment goal of stabilization and radiographic SIJ fusion with Sacrix was reached.

Implications and actions needed

The SI joint has a large surface area and, when healthy, has very little movement, that causes pain. It is thought that ligamentous laxity, such as after childbirth, can lead to painful micromotion. Other conditions, such as arthritis, trauma, infection, and stressors from adjacent lumbar fusion, may also contribute to painful micromotion. With an increase in recognition that over 22% of patients who present with back pain have SIJ pain rather than back pain (4) and the over 43% of lumbar instrumented fusions have adjacent segment breakdown of their SI joint (5), we see increasing publications on SIJ fusions (9,10,21,22). In this report, there was a delay in surgical intervention between failed conservative treatment and the salvage SIJ surgery because the surgeons did not have a revision option, other than an open surgery, to remove the laterally placed TTIs and screws, which carries significant risks. We expect to see higher incidences of failed diret lateral SIJ fixation being revised with the Sacrix technique as more surgeons become aware of this new salvage technique. Patients can also benefit from earlier intervention.

Conclusions

The percutaneous lateral-oblique transfixation technique can be used for salvaging failed direct lateral SIJ fusion without the removal of the prior implants. It utilizes an approximate 1-inch incision. Using this technique, two variable-threaded screws can be safely placed along the outer border of the iliac crest posteriorly and advanced obliquely and anteriorly across the SI joint into the sacral alar at the S1 and S2 levels, allowing for cancellous bone self-harvest and purchase. This trajectory has a favorable mechanical advantage when considering the anterior location of the IAR within the synovial portion of the joint. This less invasive technique avoids gluteal muscle disruption and neurovascular injuries. All three patients had improved clinical symptoms and achieved SIJ fusion despite not moving the original implants. The Sacrix technique is simple and reproducible and thus could be taught to a broad cohort of physicians who treat patients with SIJ pain. A larger case series would be needed to confirm this conclusion. With the Sacrix technique, we observed CT scan confirmation of SIJ bony fusion as early as 6 months. In conclusion, the Sacrix technique may be considered as an early intervention in patients who present with persistent and recurrent pain after 6 months post SIJ fixation with radiographic evidence of pseudoarthrosis.
