Side specific differences of Hounsfield-Units in the osteoporotic lumbar spine

Florian Metzner1,2#, Rebekka Reise1,2#, Christoph-Eckhard Heyde1,2, Nicolas Heinz von der Höh2*, Stefan Schleifenbaum1,2*

1ZESBO-Center for Research on Musculoskeletal Systems, Faculty of Medicine, Leipzig University, Leipzig, Germany; 2Department of Orthopaedic Surgery, Traumatology and Plastic Surgery, University of Leipzig Medical Center, Leipzig, Germany

Contributions: (I) Conception and design: F Metzner, S Schleifenbaum, CE Heyde; (II) Administrative support: CE Heyde, NH von der Höh; (III) Provision of study materials or patients: CE Heyde, NH von der Höh, S Schleifenbaum; (IV) Collection and assembly of data: R Reise, F Metzner; (V) Data analysis and interpretation: F Metzner, S Schleifenbaum, CE Heyde; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

*These authors contributed equally to this work as co-senior authors.

Correspondence to: Florian Metzner, M.Sc. Research Associate, ZESBO-Center for Research on Musculoskeletal Systems, Faculty of Medicine, Leipzig University, Semmelweisstraße 14, 04103 Leipzig, Germany; Department of Orthopaedic Surgery, Traumatology and Plastic Surgery, University of Leipzig Medical Center, Leipzig, Germany. Email:

Background: Gold standard for determining bone density as a surrogate parameter of bone quality is measurement of bone mineral density (BMD) by dual energy X-ray absorptiometry (DXA), most commonly performed on the lumbar spine (L1–L4). Computed tomography (CT) data are often available for surgical planning prior to spine procedures, but currently this information is not standardized for bone quality assessment. Besides, measuring the Hounsfield-Units (HU) is also of great importance in the context of biomechanical studies. This in vitro study aims in comparing BMD from DXA and HU based on diagnostic CT scans. In addition, methods are presented to quantify local density variations within bones.

Methods: One hundred and seventy-six vertebrae (L1–L4) from 44 body donors (age 84.0±8.7 years) were studied. DXA measurements were obtained on the complete vertebrae to determine BMD, as well as axial CT scans with a slice thickness of 1 mm. Using Mimics Innovation Suite image processing software (Materialise NV, Leuven, Belgium), two volumes (whole vertebra vs. spongious bone) were formed for each vertebra, which in turn were divided in their left and right sides. From these total of six volumes, the respective mean HU was determined. HU of the whole vertebra and just spongious HU were compared with the BMD of the corresponding vertebrae. Side specific differences were calculated as relative values.

Results: Whole bone and spongious HU correlated significantly (P>0.001; α=0.01) with BMD. A positive linear correlation was found, which was more pronounced for whole bone HU (R=0.72) than for spongious HU (R=0.62). When comparing the left and right sides within each vertebra, the HU was found to be 10% larger on average on one side compared to the opposite side. In some cases, the difference of left and right spongious bone can be up to 170%. There is a tendency for the side comparison to be larger for the spongious HU than for the whole vertebra.

Conclusions: Determination of HU from clinical CT scans is an important tool for assessing bone quality, primarily by including the cortical portion in the calculation of HU. Unlike BMD, HU can be used to distinguish precisely between individual regions. Some of the very large side-specific gradients of the HU indicate an enormous application potential for preoperative patient-specific planning.

Keywords: Computer tomography (CT); Hounsfield-Units (HU); osteoporosis; vertebral bone; bone quality

Submitted Oct 10, 2023. Accepted for publication Mar 07, 2024. Published online Jun 11, 2024.

doi: 10.21037/jss-23-121

Highlight box

Key findings

• There are side related differences in Hounsfield-Units (HU) within individual lumbar vertebral bones.

What is known and what is new?

• HU of clinical computed tomography (CT) can be used for determination of bone mineral density.

• Side specific differences of HU within lumbar vertebrae were quantified using a volumetric measurement approach.

What is the implication, and what should change now?

• HU of opportunistic CT imaging should be used routinely for qualitative as well as quantitative measure of bone strength.


Dual energy X-ray absorptiometry (DXA) is the gold standard for the diagnosis of osteoporotic bone loss due to its simplicity and low radiation exposure. It usually involves imaging the lumbar spine (L1–L4) as well as the proximal femur in a single plane and calculating the bone mineral density (BMD) projected over the area in g/cm2 and comparing it with healthy people (T-score). However, when using this method, the diagnosis is often falsely negative due to overestimation of bone mineral content caused by osteophytes, calcification in the surrounding tissue or obesity (1-3). Quantitative computed tomography (QCT) can be performed as an alternative, usually on a single lumbar vertebra (L1–L3). This type of bone density assessment can be performed by using regular computed tomography (CT) equipment. However, a separate scan is necessary in which radiographic phantoms of known radiation absorption are inserted into the scan volume. These phantoms are then used for converting the Hounsfield-Units (HU) into the corresponding mineral density in g/cm3 (4-6).

CT data of the thoracic or lumbar spine are often available as part of routine examinations such as prior to surgical interventions on the spine. In order to avoid additional radiation exposure due to separate DXA analysis, using clinical CT data for quantifying bone quality is of great interest, especially for surgical planning (7-10). Numerous studies investigated the relationship between HU from clinical spiral CT and the determined BMD or T-score from DXA (3,11-15). Their cut-off values are ranging from 91 to 139 HU for identifying spinal osteoporosis (7,9,11,16-18). HU is thereby usually measured based on one or more elliptical regions of interest (ROIs) located in the spongious region of lumbar vertebral bodies (2,19,20). Only few studies addressed regional differences within single vertebrae. In these studies, HU was determined either within one or more axial layers within the vertebral body (21) or including the pedicles (22). No significant difference was found between the left and right sides for the entire study group (21). In contrast, Matsukawa et al. investigated the HU of multiple volumetric ROIs within individual vertebrae. They focused on the comparison between vertebral bodies and different subregions of the vertebral arch and processes (23).

Biomechanical studies often evaluate different interventions on the spine (implant design, implantation technique) by comparing the left and right sides. This form of study design is a practicable solution due to the limited availability of body donor tissue and its large inter-individual variance (24-30). The results may be influenced by a large side-specific variance in biomechanical properties. This leads to the question of whether side-specific density gradients exist within individual vertebrae and results in three objectives for this study. First, a volumetric approach will be used to determine the vertebral HU with and without the cortical regions. Since cortical areas are included in bone density measurements using DXA, the relationship between BMD and HU will be investigated as well with and without cortical areas. Second, the comparison of volumetric HU determination and previous methods (ellipse in one/three axial slices) will be performed. Finally, the variation of volumetric HU between left and right side within single vertebrae will be investigated. We present this article in accordance with the STROBE reporting checklist (available at


Specimen and image acquisition

One hundred and seventy-six vertebrae (L1–L4) from 44 human cadavers (18 females, 26 males) with age of 84.0±8.7 years were obtained in fresh and anatomically unfixed condition and stored at −80 ℃ (Table 1). All body donors gave their informed and written consent to the donation of their bodies for teaching and research purposes while alive. Being part of the body donor program regulated by the Saxonian Death and Funeral Act of 1994 (third section, paragraph 18 item 8), institutional approval for the use of the post-mortem tissues of human body donors was obtained from the Institute of Anatomy (University of Leipzig) by the Ethics Committee of the University of Leipzig Medical Center (ethical approval No. 129/21-ck). The authors declare that all experiments were conducted according to the principles of the Declaration of Helsinki (as revised in 2013).

Table 1

Descriptive statistics regarding the distribution of the individual information of all included donors

Variable MIN MAX Mean SD
Age (years) 65 98 84.0 8.7
Mass (kg) 30 107 62.3 16.1
Height (cm) 142 176 161 8
BMI (kg/m2) 13.1 41.3 23.8 5.6

BMI, body mass index; MIN, minimum; MAX, maximum; SD, standard deviation.

CT and DEXA data was gathered from several previous biomechanical studies (27,29). All imaging was conducted on fresh frozen specimen. Each specimen was first subjected to DXA scanning followed by CT within approximately 2 hours. The following Table 2 shows the distribution of the human specimens regarding used imaging devices and scan settings. Imaging settings vary due to the absence of specific radiological imaging requirements in some studies. In addition, some studies (27,29) were performed several years apart, which meant that equipment changes or new acquisitions could not be avoided.

Table 2

Specific clinical scan setting of both DXA and CT imaging

Specification Study group
A (27) B (29) C (31) D (32) E (32)
   Manufacturer Philips Philips Philips Philips Philips
   Model iCT 256 iCT 256 iCT 256 iCT 256 Brilliance Big Bore
   Kilovolt peak (kV) 120 120 120 120 120
   Tube current (mA) 152 265 152 152 87
   Exposure time (mS) 658 755 658 658 2309
   Slice thickness (mm) 1 1 1 1 1
   Slice spacing (mm) −1 −1 −0.5 −0.5 −0.5
   Pixel spacing (mm) 0.39 0.39 0.39 0.39 0.48
   Manufacturer Hologic Hologic Hologic Hologic Hologic
   Model Delphi A (S/N71109) Horizon A (S/N303714M) Delphi A (S/N71109) Delphi A (S/N71109) Horizon A (S/N303714M)
Number of donors 10 10 16 5 3
Number of vertebrae 40 40 64 20 12

DXA, dual energy X-ray absorptiometry; CT, computed tomography.

Each vertebra was grouped according to its degree of osteoporosis based on DXA as shown in Table 3. A large proportion of the body donors exhibited reduced bone quality. Two donors were excluded for HU examination. One had severe degenerative changes which prevented distinguishing the individual vertebrae. The other specimen contained an implant, which resulted in pronounced artifact formation in the CT images. An additional vertebra also had to be excluded due to a pronounced compression fracture.

Table 3

Number and relative frequency (%) of all included vertebrae according to their degree of osteoporosis (normal, osteopenic, osteoporotic)

Variable N %
Normal 39 22
Osteopenia 54 31
Osteoporosis 83 47
Total 176 100

Classification was based on the T-scores from dual energy X-ray absorptiometry according to the guidelines of the World Health Organization.

Measurement of HU

Mimics Innovation Suite image processing software (Materialise NV, Belgium) was used to mask and semi-automatically separate the individual vertebral bodies by applying the global thresholding method to the bony parts. Subsequently, the holes inside the vertebrae are closed in order to create a mask that completely fills and represents the bone.

The average HU of all voxels within the vertebral bone gives HUC (Figure 1A). The HU of the spongious bone HUS (Figure 1B) is defined by uniformly removing about 5 mm from the mask of the complete vertebra using the “Erode” function. This creates a new mask containing only spongious bone regions, thus defining the ROI for determining HUS. By using the “Crop-Mask” function, the masks HUC and HUS are divided into their respective left and right halves (Figure 1C-1E).

Figure 1 Generation of the volumes as cross-sectional view (A,B) as well as 3D view (C-E). HUC represents the HU of a complete vertebra including cortical bone and HUS without cortical bone. HUC,L, HUC,R, HUS,L and HUS,R show the respective left and right halves of HUC and HUS. Outliers of up to 1.5 times the interquartile range are marked as circles. If the factor exceeds 2.5, they are marked with asterisks. This figure is reproduced with kind permission from (32). HU, Hounsfield-Units.

Spongious HU is additionally measured using previously published methods to provide a comparison to existing methods. This is done by defining three ellipses (superior, middle, and inferior) in the axial layers of each vertebra. Those ellipses cover the spongious region within the vertebral body, with at least 1 mm distance between the edge of the ellipses and the cortical bone (Figure 2). On one hand, the mean HU of the middle ellipse (HUm) is determined, and on the other hand, the mean HU from all three ellipses (HUave) of each vertebral body is calculated (2,7,17,33,34).

Figure 2 Frontal and axial view of a vertebra with highlighted elliptical regions of interest for evaluating the spongious HU. HU, Hounsfield-Units.

Both HUC and HUS are compared to the BMD of the corresponding vertebrae. Lateral differences are calculated from the left and right partial bodies and expressed as percentages to determine the side-specific differences. Hereafter, this parameter will be referred to as coronal dysbalance (CD). CD is defined by calculating the difference between the left and right HU and relating the difference to the respective lower value. Accordingly, negative numerical values mean higher HU on the right side and vice versa. Furthermore, the absolute value of coronal dysbalance (CDAV) is used to distinguish the extent of CD between individual groups.

Statistical analyses

Descriptive statistics were examined using IBM SPSS Statistics 24 (IBM Corporation, Armonk, NY, USA). Statistical significance is defined with P<0.05. Independent Kruskal-Wallis test was used for comparing group specific differences of HU within the stages of osteoporosis and for comparing the relative differences of side specific HU. Wilcoxon tests were used for testing differences between spongious and cortical HU within the same vertebrae. Spearman correlation as well as simple linear regression was used to determine relationships between BMD and HUC as well as BMD and HUS. Bland-Altman plots and linear regressions were used to compare the different methods used to examine the HU within each vertebra (35).


Distribution of HU regarding osteoporosis

The HU of both vertebral bone (HUC) and spongious bone (HUS) are highest in in normal bones, followed by osteopenic and osteoporotic bones. Inter-group differences are consistently significant. HUC is significantly higher than HUS among all groups (Figure 3).

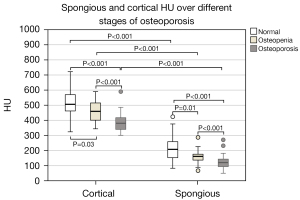

Figure 3 Distribution of cortical and spongious HU grouped by their degree of osteoporosis. HU, Hounsfield-Units.

HU vs. BMD

There is a significant correlation (Spearman, 2-sided, significance level: 0.01) between BMD and HUC (P<0.001; R=0.724) as well as between BMD and HUS (P<0.001; R=0.619). Linear regression analysis also yielded significant results for HUC over BMD (P<0.001; R2=0.524) and HUS over BMD (P<0.001; R2=0.383). A scatter plot with the regression equations is shown in Figure 4.

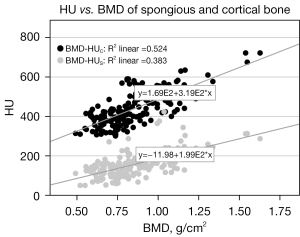

Figure 4 Scatter plots showing the dependence of cortical HU (HUC) and spongious HU (HUS) as a function of BMD from DXA analysis. Linear regressions were calculated for each group. HU, Hounsfield-Units; BMD, bone mineral density; DXA, dual energy X-ray absorptiometry.

Comparison of HU measurement approaches

Bland-Altman plots and linear regression analyses were performed to compare the outcomes of all HU measurement approaches. First, the results of HUm and HUave were compared. The mean difference between the measured values is 12.1±33.0 HU. 95.8% of the data points (Figure 5) are within the range of variation. Linear regression shows a significant correlation (P<0.001, R2=0.77).

Figure 5 Bland-Altman plot showing the differences of measuring HU via one ellipse and as the average of three ellipses within the vertebral body. The red line indicates the average difference of both measures. HU, Hounsfield-Units.

The mean difference between HUS and HUm is 22.2±29.8 HU (Figure 6) and 93.4% of the measured values are within the specified range of variation. A linear regression analysis provides a significant correlation (P<0.001, R2=0.79).

Figure 6 Bland-Altman plot of volumetric spongious HU compared with HU of the central ellipse. The red line indicates the average difference of both measures. HU, Hounsfield-Units.

Same statistical procedures were used for comparing HUave and HUS. The mean difference here is 10.1±21.5 HU and 95.8% of the data points were within the range of variation (Figure 7). The linear regression is also significant (P<0.001, R2=0.90).

Figure 7 Bland-Altman plot of volumetric spongious HU compared with the HU of all three ellipses. The red line indicates the average difference of both measures. HU, Hounsfield-Units.


Figure 8 shows the cortical and spongious CD of HU within the vertebra. Again, the groups are classified according to proceeding osteoporosis.

Figure 8 Relative coronal dysbalance of cortical and spongious bone grouped into stages of osteoporosis according to bone mineral density from dual energy X-ray absorptiometry. Positive values resemble higher HU on the left side and vice versa. Outliers of up to 1.5 times the interquartile range are marked as circles. If the factor exceeds 2.5, they are marked with asterisks. HU, Hounsfield-Units.

No significant differences were found between all groups, but it can be seen that the HU tended to be larger on the right half of the vertebrae than on the left. All examined vertebrae were further categorized to highlight the CD (Table 4). Vertebrae in which the CD is less than 5% belong to the “none” category. Remaining vertebrae are classified according to their algebraic sign of relative difference (positive = left, negative = right). The categorization was performed for spongious and cortical bone and is identical in each case. Almost half of the vertebrae thus have higher HU on their right sides.

Table 4

Number and relative frequency (%) of all included vertebrae according to their CD, which is calculated from the relative difference of the HU in the left and right vertebral halves

Variable N %
Left 39 22.2
None 46 26.1
Right 82 46.6
Missing 9 5.1

A vertebra with increased HU on the right side is categorized as “right” and vice versa. Any difference of less than 5% is not assigned to any side (none). Any vertebrae that cannot be evaluated are not included (missing). CD, coronal dysbalance; HU, Hounsfield-Units.

The extent of CDAV is shown in Figure 9. Normal vertebrae show an average of 3.9% higher CDAV in the spongious bone than in the whole vertebra. Maximum values reach up to around 170%. Furthermore, CDAV is significantly lower in osteopenic spongious bone than in normal bone. For whole vertebrae, the median difference in CDAV is 15.4%±17.2% and for spongious bone 19.3%±26.0%. The detailed results are shown in Table 5.

Figure 9 Relative difference values of the coronal dysbalance. Specimens were grouped into normal, osteopenic and osteoporotic as well as into just spongious and cortical bone. Outliers of up to 1.5 times the interquartile range are marked as circles. If the factor exceeds 2.5, they are marked with asterisks.

Table 5

Detailed results of Hounsfield-Units as well as coronal dysbalance within each vertebra

Variable Group Cortical bone Spongious bone P
Mean Median SD SE P5 P95 Mean Median SD SE P5 P95
Volumetric HU Total 435 420 88 7 317 585 154 143 64 5 71 287 <0.001
Normal 520 506 88 14 400 722 218 208 82 13 116 376 <0.001
Osteopenia 459 460 73 10 352 581 158 162 40 6 92 223 <0.001
Osteoporosis 380 381 49 6 310 442 121 121 38 4 60.5 169 <0.001
CD in % Total −4.9 −4.6 22.6 1.7 −40.8 26.1 −2 −3.3 32.4 2.5 −48.7 55.5 0.14
Normal −6.5 −8.7 17.1 2.8 −36.6 24.2 −2.4 −6.4 39.5 6.5 −51.9 59.7 0.42
Osteopenia −5.3 −4.8 19 2.7 −43.4 22.1 −3.8 −1.6 18.6 2.6 −33 10.4 0.29
Osteoporosis −3.9 −3.6 26.7 3 −42.9 30.9 −0.8 −1.6 35.7 4 −49.8 71.9 0.43
CDAV in % Total 15.4 9.7 17.2 1.3 0.8 47.9 19.3 9.3 26 2 1.3 67.4 0.03
Normal 13.9 11.6 11.7 1.9 0.3 41.6 24.8 13.9 30.5 5 2.6 67.4 <0.001
Osteopenia 13.8 8.6 14 2 1.1 47.9 12 6.3 14.6 2.1 1 45.1 0.26
Osteoporosis 17.1 9.6 20.7 2.3 0.9 59.6 21.3 9.8 28.6 3.2 1.2 84.6 0.09

The statistical differences between the vertebrae including cortical bone and only spongious bone are represented with the corresponding P values. An additional grouping into proceeding osteoporosis, based on DXA imaging, is displayed. HU, Hounsfield-Units; CD, coronal dysbalance; DXA, dual energy X-ray absorptiometry; CDAV, coronal dysbalance absolute value; SD, standard deviation; SE, standard error; P5, 5% percentile; P95, 95% percentile.


The average HU of 176 lumbar vertebrae was examined over the entire bone, the spongious regions as well as their left and right subvolumes. BMD was additionally determined from all vertebrae by DXA and grouped into the corresponding osteoporosis grades (Table 3).

Distribution of HU regarding osteoporosis

HUC is higher than HUS in osteoporotic, osteopenic and normal vertebrae, which is not surprising since the non-bony components within the interstitial spongious bone are included in the measurement of HU. There are significant differences between the osteoporosis grades for HUC and HUS (Figure 3). HUS for osteoporotic, osteopenic, and normal vertebrae are on average 121, 158, and 218 HU, respectively. In this regard, Pinto et al. (11) gathered data from eight studies. They showed a range from 55 to 130 HU for osteoporotic vertebrae, 79 to 146 HU for osteopenic vertebrae, and 121 to 230 HU for normal vertebrae. A cutoff value of approximately 130 to 140 HU can be estimated for HUS using the boxplots in Figure 3 to distinguish between osteoporotic and osteopenic vertebrae. Numerous studies have been concerned with the determination of such a threshold (3,7,9,11,36,37). Thresholds of 99 HU (18), 118 HU (19) or 135 HU (17), which are dysbalanced regarding specificity and sensitivity, have been found. The threshold for distinguishing between osteopenia and osteoporosis for HUC lies about 400 HU. No comparative data were discovered in the literature regarding HU measurements including cortical areas.

HU vs. BMD

Numerous studies have demonstrated a significant correlation between HU from the lumbar vertebrae (L1–L4) and BMD from DXA. Correlation coefficients R compiled by Ahmad et al. ranged from 0.46 to 0.76 (3). This compares with the correlation between volumetric determined HUS with BMD, which provides a moderate correlation (R=0.61). Even higher correlation with (R=0.72) was demonstrated by considering the cortical fractions in HUC. The reason for this may be that cortical components are also included in the calculation of the BMD obtained by DXA. Our results thus confirm that when comparing bone density information between CT and DXA, not only the spongious HU within the vertebral body, but also the HU of cortical areas should be included. Bone density assessment from CT images is only practical in a clinical setting, if CT data is already available. Due to higher radiation exposure compared to DXA it might not be a stand-alone diagnostic tool.

Comparison of HU measurement approaches

By comparing the different measurement methods (one ellipse, average of three ellipses, volumetric) it was shown that by evaluating one ellipse within the vertebral body (HUm) the average values are 22 HU lower than the volumetrically determined HUS. Thereby, only 93.4% of the data points are within the specified range of fluctuation (Figure 6). HUm and HUave are on average 12 and 10 HU lower than HUS and 95.8% of the data points are within the defined fluctuation range. Hence, we conclude that the measurement method must always be considered for a valid use of HU as an instrument for the evaluation of bone quality. This problem is reflected in the partially different thresholds for distinguishing normal, osteopenic, and osteoporotic bone mentioned above (17-19).


The average CD is −2% for spongious bone and −4.9% for cortical bone, whereas negative signs indicate higher values on the right half of the vertebra and vice versa (Table 5). In normal bone, CD is slightly greater than in osteopenic and osteoporotic bone, however the differences are not significant. Referring to the classification from Table 3, almost half of all vertebrae showed a higher HU on the right side. A possible explanation for this is that there are much more right-handed than left handed individuals. A noticeable aspect of our results is that both the number of outliers and their amounts of about 50% to 170% are higher compared to the other groups, especially within the spongious bone of osteoporotic vertebrae (Table 5). Moreover, the CD in the spongious bone is significantly greater for normal bones than for those involving the cortical bone (Figure 9).

Several studies have investigated the variation of HU across different regions within individual vertebrae. Yang et al. examined several ROIs (including anterior, left side, right side) from axial slices of 100 lumbar vertebrae and could not find significant differences when comparing the individual regions. However, only the mean or median values of the ROIs over the entire subgroup were compared (21). Odeh et al. separated vertebrae into subvolumes (including vertebral body, pedicle, vertebral arch, lateral processes and spinous process) and calculated their bone mineral content from HU using a linear relationship. Cortical (450< HU <1,400) and spongious (200< HU <450) regions were considered separately, but left and right portions (e.g., of the pedicle) were not compared individually (38). Another group around Xu et al. determined the mean HU of both pedicles additionally to the HU of the vertebral body. The authors defined elliptical ROI within an axial slice in which both pedicles and the center of the vertebral body can be seen. HU was determined in the pedicle with and without cortical bone, and the mean value was calculated from both the left and right pedicles. Scanning data were then correlated with postoperative pedicle screw loosening. The vertebrae that experienced screw loosening had significantly lower HU in the pedicle as well as the vertebral body (22).

To the best of our knowledge, this is the first study to investigate and quantify the variation in HU between the left and right sides of the vertebrae. Maximum values of CDAV reach up to 170%. Valuable recommendations for clinical practice could be derived by combining this knowledge with validated thresholds for assessing bone quality from HU. An optimal treatment strategy (e.g., use of bone cement) can thus be derived on a side-specific basis in the case of a large coronal density gradient (9,12,39,40). These data may help to identify an individual approach for an optimal treatment strategy in pedicle screw placement in osteoporotic and osteopenic vertebral bodies in spinal surgery. Several studies investigated to what extent HU can be used for the prediction of screw loosening. They concluded that HU is a better predictor of screw loosening than the DXA T-score, particularly in the lumbar spine (12,40,41). Additional work is still needed regarding the relation between the local HU and implant stability. More valid measurement methods should also be specified for determining threshold values, which can be used for developing optimal recommendations for surgical procedures (36,37). A possible integration of our workflow into clinical practice faces two challenges. One is the reliability of HU itself as a quantitative measure of bone strength. The second problem is developing (semi-)automatic software tools for integrating the presented method into current radiological workflows.


Both CT and DEXA scans were performed with frozen spinal specimens. Care was taken when performing DXA scans in order to ensure physiological alignment of the specimens, but there are no influences from surrounding tissues like in situ. The study included CT analyses carried out on different devices. The used scan parameters were listed in Table 2. Since all scans used a tube voltage of 120 kV and consistently the same slice thickness, only minor deviations are assumed (36). All scans were done in the same hospital, which means that the scans were performed by the same staff.

No further classification was made of the body donors examined regarding degenerative deformities of the musculoskeletal system. A high average age of the examined donor organs leads to the assumption of a high prevalence of such phenomena.

In the selection of ROIs, no restriction was made regarding blood vessels or degenerative phenomena as was done by other research groups (1,21,22). Local ossifications could thus influence the measurement results. However, this was partly the aim of the work by pointing out how much the distribution of HU within the vertebral body can differ. The partially large differences might be caused by degenerative phenomena. It is therefore necessary to address the evaluation of such influences in the future.


The determination of bone quality by means of DXA has only limited significance due to the surface projection and is partially prone to errors. Measuring the HU from clinical CT scans, whenever available, enables a general assessment of bone quality using simple analysis methods, although we recommend and see a great potential for standardization of the measurement methods. Furthermore, this study demonstrated that there are sometimes very large CDs in the measured HU within individual vertebrae. These indicate large differences in bone quality. Detailed knowledge of bone density distribution holds enormous potential for preoperative patient-specific planning.


Abstract as well as Figure 1 was presented at the 18th Annual Meeting of the German Spine Society (DOI: 10.1007/s00586-023-07991-z). We would like to thank Springer publisher for the permission to publish the abstract and Figure 1. The abstract was also presented in German language at the German Congress of Orthopaedics and Traumatology 2023 (DOI: 10.3205/23dkou306).

Funding: This research was funded by Roland Ernst Stiftung für Gesundheit (Funding Number: ROLAND ERNST STIFTUNG/ 01/21). This article was funded by the Open Access Publishing Fund of Leipzig University, which is supported by the German Research Foundation within the program Open Access Publication Funding.


Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at

Data Sharing Statement: Available at

Peer Review File: Available at

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All body donors gave their informed and written consent to the donation of their bodies for teaching and research purposes while alive. Being part of the body donor program regulated by the Saxonian Death and Funeral Act of 1994 (third section, paragraph 18 item 8), institutional approval for the use of the post-mortem tissues of human body donors was obtained from the Institute of Anatomy (University of Leipzig) by the Ethics Committee of the University of Leipzig Medical Center (ethical approval No. 129/21-ck). The authors declare that all experiments were conducted according to the principles of the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See:
